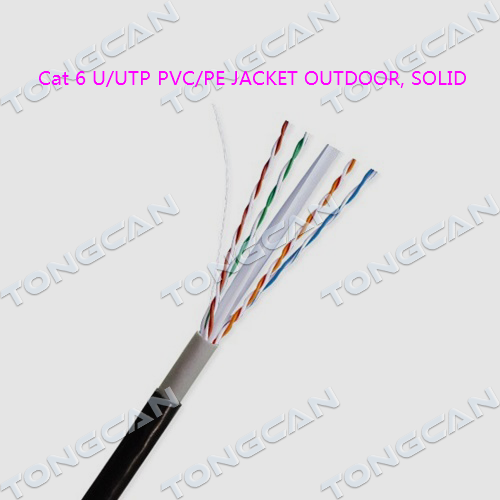

LAN solid 4-pairs category cable Cat6 U/UTP
Description:
Cat 5E U/UTP(UTP), Unshielded Twisted Pair cable is low-cost network cable built with 4 pair of insulated conductors twisted together and covered with a plastic jacket for protection. It is called unshielded because it has no additional foil wrap, or shield, which is added to cables when electromagnetic shielding is required. U/UTP(UTP) cable is used extensively in local area networks of 100M.
4P + HDPE + Cross Filler + Rip-cord(Optional) + Outer Jacket
Features:
> Rated temperature:70℃
> Reference standard: UL Subject 444, EIA/TIA 568B.2-10& ISO/IEC 11801, IEC 61156
> Solid bare copper conductor
> Color-coded PE insulation
> Rip cord (optional)
> PVC,LSZH or PE jacket
> Packaging: Reel, Reel in Box
Specification:
Construction
|
Conductor |
Construction |
CAT6 U/UTP |
|
Number of Pairs |
4 Pair |
|
|
AWG |
23 AWG |
|
|
Conductor material |
Solid Bare Copper |
|
|
Conductor Dimension (mm) |
0.565 |
|
|
Insulation |
insulation material |
HDPE |
|
Insulation Dimension [mm) |
1.02 |
|
|
Number Colour (Ring or Strip marking) |
1.White/Blue & Blue |
|
|
Cross Filler |
No |
|
|
Shield |
Individual Shield & Material |
No |
|
Outer Shield & Material |
No |
|
|
Drain Wire |
No |
|
|
Outer Jacket |
Outer Jacket Material |
PVC, LSZH, PE |
|
Outer Jacket Ripcord |
Based On Customer Requirements |
|
|
Overall Nominal Diameter (mm) |
23AWG UTP nom:6.2±0.3mm |
Electrical Characteristics
|
Max. Mutual Capacitance @ kHz |
≤5.6 nF/100M |
|
Max. Capacitance unbalance (pF/ 100m) |
≤330pF/100M |
|
Nominal Velocity of Propagation |
69% |
|
Max. Delay Skew (ns/100m) |
45ns/100M |
|
Max. Conductor DC Resistance @ 20 Deg. C |
8.22Ω /100M |
|
Max. DC Resistance unbalance @ 20 Deg. C |
≤2% |
|
Max. Insulation resistance (MΩ/ k m) |
5000 |
|
Max. Operating Voltage-UL |
300V |
Mechanical Characteristics
|
Operating Temp. Range |
-20~75 C |
|
Max. Recommended Pulling Tension |
100N |
|
Min. Bend Radius (Installation) |
10* O.D. |
|
Flame Test |
CMX, CMR, CM |
Application
● 100 Base-T4
● 100Base-TX
● 100VG-AnyLAN
● 1000Base-T
● 1000Base-TX
● 155Mbps ATM
● 622Mbps ATM
Order Information
|
Part No. |
Description |
AWG |
Standard color |
Packing Type |
Carton (M/FT) |
Carton meas. (cm) L*W*H |
Carton Weight (KG) |
|
UC6 PVC |
Cat 6 U/UTP solid |
23 |
RAL7035 |
Box |
305/1000 |
36.5*25.5*37 |
14.20 |
|
UC6 LSZH |
Cat 6 U/UTP solid |
23 |
RAL7035 |
Box |
305/1000 |
36.5*25.5*37 |
14.20 |
|
UC6 CMR |
Cat 6 U/UTP solid |
23 |
RAL7035 |
Box |
305/1000 |
36.5*25.5*37 |
14.20 |
|
UC6-PE |
Cat 6 U/UTP solid |
23 |
RAL7035 |
Box |
305/1000 |
36.5*25.5*37 |
14.20 |
* parts can be specified according to customers requirements.
* parameter are subject to change without prior notice.
