Hybrid Cables Fiber and Power Wire GJYXHC-22 1/2/4-cores + 2*POWER wire, FTTH + 2*POWER wire
Description:
GJYXHC-22, composite cable with FTTH cable and 2 pairs copper power wire, filled with filler and strength element, suitable CCTV and Ethernet, fiber is used to signal transmission, copper wire is used to feed the power to camera, switch, router and so on. It is commonly used for update hospital, campus, hotel and plants.

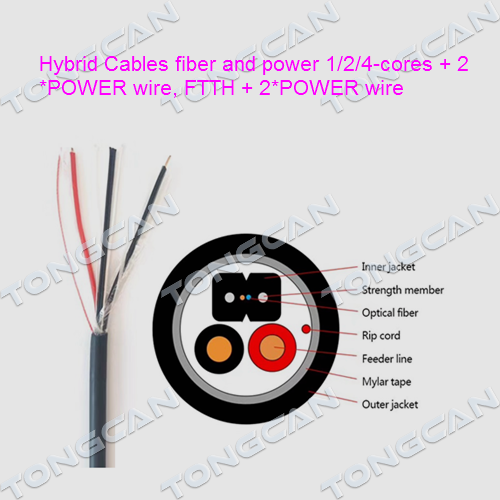

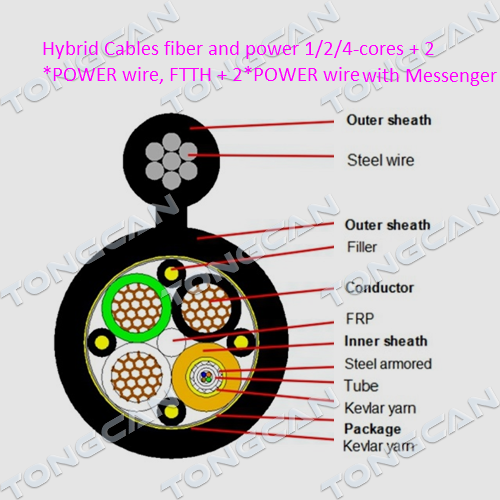

1/2/4 Fibers + 2*0.75/1.5mm Power Wire + Filler + Rip-cord(Optional) + Inner/Outer Jacket
Features:
>Bare oxygen-free copper 2*0.75/1.5mm
>1/2/4-cores fiber G.657a1 in bow-type cable
>Flood Compound
>Strength element and filler available
>PVC, LSZH and PE, white and black available
> Packaging: Reel, Reel in Box
Specification:
Construction
|
Model |
2F + 2*0.5 |
2F + 2*0.75 |
2F + 2*1.5 |
2F + 2*1.5 |
|
|
Fiber, 1F/2F/4F available |
|||||
|
Fiber type |
2*G.657a1 |
2*G.657a1 |
2*G.657a1 |
2*G.657a1 |
|
|
Strength |
FRP |
FRP |
FRP |
FRP |
|
|
Size |
mm |
2*0.5 |
2*0.5 |
2*0.5 |
2*0.5 |
|
Jacket |
LSZH |
LSZH |
LSZH |
LSZH |
|
|
Size |
mm |
2*3mm |
2*3mm |
2*3mm |
2*3mm |
|
Power cord, 2pcs, red + black |
|||||
|
Inner Conductor |
mm |
2*0.5 BC |
2*0.75 BC |
2*1.5 BC |
16*0.24 BC |
|
Insulation |
mm |
1.80 PE |
2.40 PE |
2.50 PE |
1.75 PE |
|
Sheath diameter |
mm |
5.0 PVC |
5.40 PVC |
6.20 PVC |
5.80 PVC |
Electrical Characteristics
|
Max. Mutual Capacitance @ kHz |
≤5.6 nF/100M |
|
Max. Capacitance unbalance (pF/ 100m) |
≤330pF/100M |
|
Nominal Velocity of Propagation |
69% |
|
Max. Delay Skew (ns/100m) |
45ns/100M |
|
Max. Conductor DC Resistance @ 20 Deg. C |
9.5Ω /100M |
|
Max. DC Resistance unbalance @ 20 Deg. C |
≤2% |
|
Max. Insulation resistance (MΩ/ k m) |
5000 |
|
Max. Operating Voltage-UL |
300V |
Mechanical Characteristics
|
Operating Temp. Range |
-20~75 C |
|
Max. Recommended Pulling Tension |
100N |
|
Min. Bend Radius (Installation) |
10* O.D. |
|
Flame Test |
CMX, CMR, CM |
Application
● CCTV & CATV
● Camera & Surveillance
● Plant, Hospital, Hotel and Campus
Order Information
|
Part No. |
Description |
AWG |
Color |
Package |
Carton (M/FT) |
CTN Size |
CTN W.G. |
|
2F+2C |
2F+2*0.5 |
22~24 |
Black/white |
Coil/Reel |
100/305/1000 |
D38*H28mm |
12.80KG |
|
2F+2C |
2F+2*0.75 |
22~24 |
Black/white |
Coil/Reel |
100/305/1000 |
D38*H28mm |
13.80KG |
|
2F+2C |
2F+2*1.5 |
22~24 |
Black/white |
Coil/Reel |
100/305/1000 |
D38*H28mm |
14.80KG |
|
2F+2C |
2F+2*1.5 |
22~24 |
Black/white |
Coil/Reel |
100/305/1000 |
D38*H28mm |
14.80KG |
* parts can be specified according to customers requirements.
* parameter are subject to change without prior notice.
