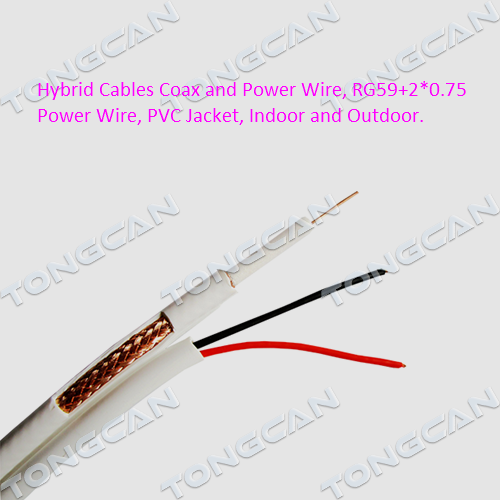

Hybrid Cables Coaxial and Power Wire HYTC-12 RG59 + 2*POWER Wire Composite Cable
Description:
HYTC-12, composite cable with COAXIAL RG cable and 2 pairs copper power wire, outer jacket with HDPE, suitable CCTV and CATV network, RG cable is used to signal transmission, copper wire is used to feed the power to camera, switch, router and so on. It is commonly used for update hospital, campus, hotel and plants.
RG59/RG6 + 2*0.75/1.5mm Power Wire + Rip-cord(Optional) + Outer Jacket + Messenger(Optional)
Features:
> Bare oxygen-free copper and CCS
> 75Ω Braiding Coaxial Cable
> Standard shielding/ Tri-shielding/Quad-shielding
> Messenger Optional
> Flood Compound
> PVC and PE, white and black available
> 5~1000MHz frequency range
Specification:
Construction
|
Model |
RG59+2*0.5 |
RG59+2*0.75 |
RG59+2*1.5 |
RG6+2*1.5 |
RG6+2*1.5 |
|
|
COAXIAL cable |
||||||
|
Inner Conductor |
mm |
0.58 CCS |
0.58 CCS |
0.58 CCS |
0.81 BC |
1.0 BC |
|
Dielectric |
mm |
3.70 FPE |
3.70 FPE |
3.70 FPE |
3.70 FPE |
4.70 FPE |
|
Outer Conductor |
al-mg (85%) |
al-mg (85%) |
al-mg (85%) |
BC/al-mg (95%) |
BC/al-mg (95%) |
|
|
Jacket |
mm |
6.0 PVC |
6.0 PVC |
6.0 PVC |
6.0 PVC |
6.5 PVC |
|
Power cord, 2pcs, red + black |
||||||
|
Inner Conductor |
mm |
16*0.20 BC |
24*0.20 BC |
16*0.32 BC |
(7*0.37)*2 BC |
(7*0.37)*2 BC |
|
Insulation |
mm |
1.80 PE |
2.40 PE |
2.50 PE |
1.75 PE |
1.75 PE |
|
Sheath diameter |
mm |
5.0 PVC |
5.40 PVC |
6.20 PVC |
5.0 PVC |
5.0 PVC |
Application
● CCTV & CATV
● Camera & Surveillance
● Plant, Hospital, Hotel and Campus
Order Information
|
Part number |
Description |
AWG |
Standard Color |
Package |
Carton(M/FT) |
Carton Size(CM) |
Carton W.G. (KG) |
|
RG59+2C |
0.58+2*0.5 |
22~24 |
Black/white |
Coil/Reel |
100/305/1000 |
D38*H28 |
14.80 |
|
RG59+2C |
0.58+2*0.75 |
22~24 |
Black/white |
Coil/Reel |
100/305/1000 |
D38*H28 |
14.80 |
|
RG59+2C |
0.58+2*1.5 |
22~24 |
Black/white |
Coil/Reel |
100/305/1000 |
D38*H28 |
14.80 |
|
RG6+2C |
0.81+2*1.5 |
22~24 |
Black/white |
Coil/Reel |
100/305/1000 |
D38*H28 |
16.80 |
|
RG6+2C |
1.02+2*1.5 |
22~24 |
Black/white |
Coil/Reel |
100/305/1000 |
D38*H28 |
18.80 |
* parts can be specified according to customers requirements.
* parameter are subject to change without prior notice.
